X30
AX3000 Dual-Band Wi-Fi 6 XPON Router
AX3000Wi-Fi 6XPON
Our best-selling fiber router. Everything the X31 does, minus the landline port, the sweet spot for most fiber homes.
What makes the X30 different
- Based on Latest Airoha / MediaTek chipset
- Higher Flash and RAM for stable performance
- High-Power FEM on both bands for max coverage
- 4 High Gain Antennas for enhanced wi-fi range
- Smart OFDMA keeps every connection smooth
- EasyMesh Compatible
GPON and EPON compatibleWPA3 Encryption4 Gigabit Ethernet LAN portsParental controlRemote Management
Everything plugs in here

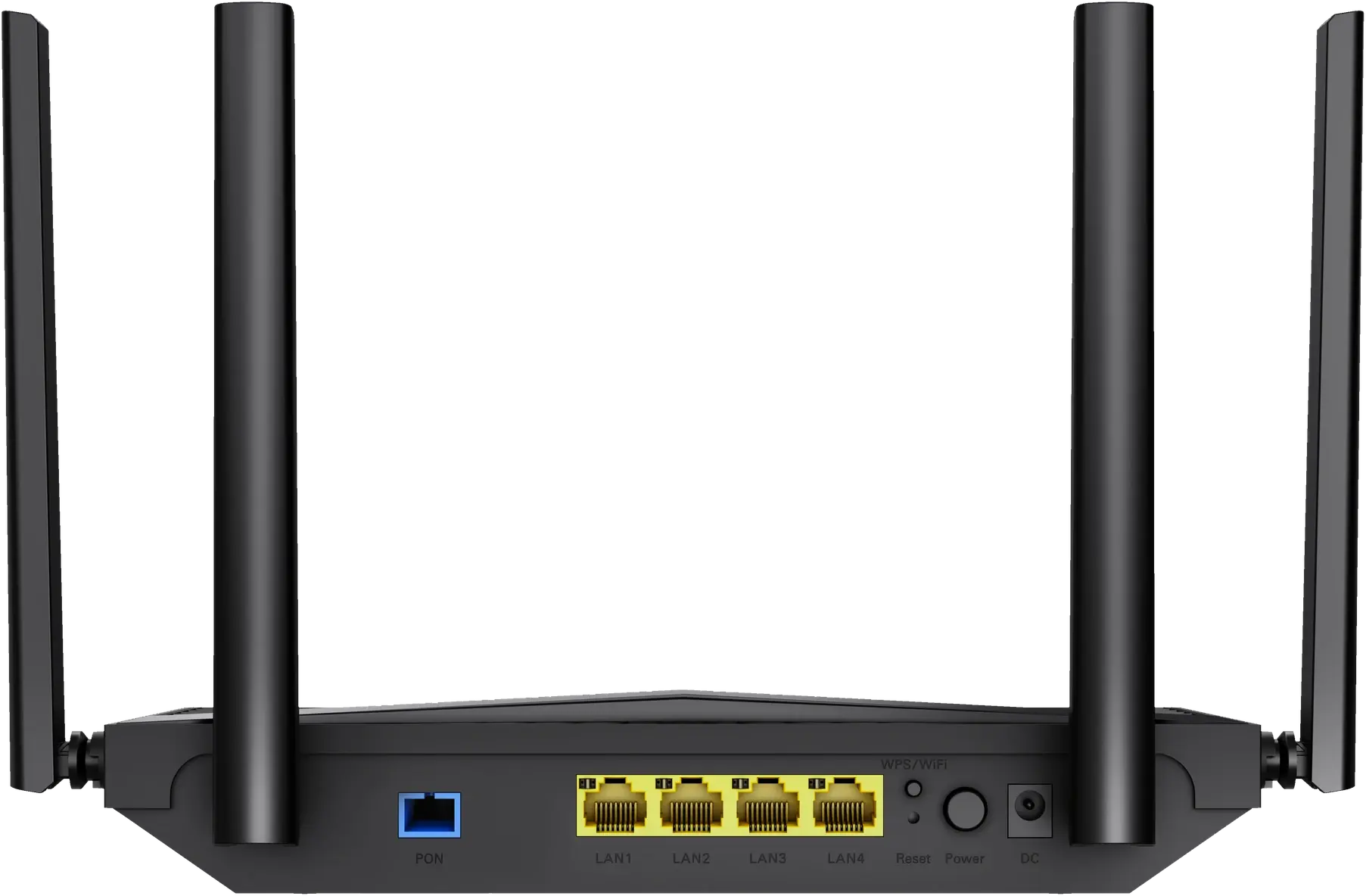

The X30 rear panel, port by port.
Rear panel
Full specifications
Values marked TBD are still to be confirmed and will be published once the datasheet is finalized.
Wireless
- Wi-Fi standard
- Wi-Fi 6 (802.11ax)
- Wi-Fi class
- AX3000
- Bands
- Dual-band 2.4 GHz + 5 GHz
- 2.4 GHz data rate
- 574 Mbps (802.11ax)
- 5 GHz data rate
- 2402 Mbps (802.11ax, HE160)
- Stream technology
- Smart OFDMA + MU-MIMO
- Front-end module
- High-power external FEM (eFEM) on 2.4 and 5 GHz
- Antennas
- 4 × high-gain external
- Antenna gain
- 5 dBi
Connectivity
- PON type
- XPON - GPON and EPON compatible
- WAN port
- XPON fiber (GPON / EPON)
- LAN ports
- 4 × Gigabit Ethernet
- Buttons
- WPS / Wi-Fi, Reset, Power on/off
Hardware
- Chipset
- Airoha / MediaTek
- RAM
- 512 MB
- Flash memory
- 256 MB
- Dimensions (W × D × H)
- TBD
- Power input type
- DC jack
- Power method
- DC
- Power input
- 12 V / 2 A
- Operating temperature
- 0°C – 40°C (32°F – 104°F)
- Storage temperature
- -40°C – 60°C (-40°F – 140°F)
- Operating humidity
- 10% – 90% non-condensing
- Storage humidity
- 5% – 90% non-condensing
Software & security
- Encryption
- WPA3
- Mesh
- EasyMesh compatible
- Parental control
- Yes
- Remote management
- Yes
- IPv4 / IPv6 support
- Yes
Compliance & warranty
- Origin
- Made in India
- Certifications
- TEC
- Warranty
- 3 years
- Box contents
- Router, power adapter
