R30
AX3000 Dual-Band Wi-Fi 6 Router
AX3000Wi-Fi 6Ethernet
A 2.5-gigabit WAN port means your router is never the bottleneck, even when your plan outgrows gigabit.
What makes the R30 different
- Based on Latest Airoha / MediaTek chipset
- Higher Flash and RAM for stable performance
- High-Power FEM on both bands for max coverage
- 4 High Gain Antennas for enhanced wi-fi range
- Smart OFDMA keeps every connection smooth
- 2.5G WAN Port
- EasyMesh Compatible
WPA3 Encryption4 Gigabit Ethernet LAN portsParental controlRemote Management
Everything plugs in here

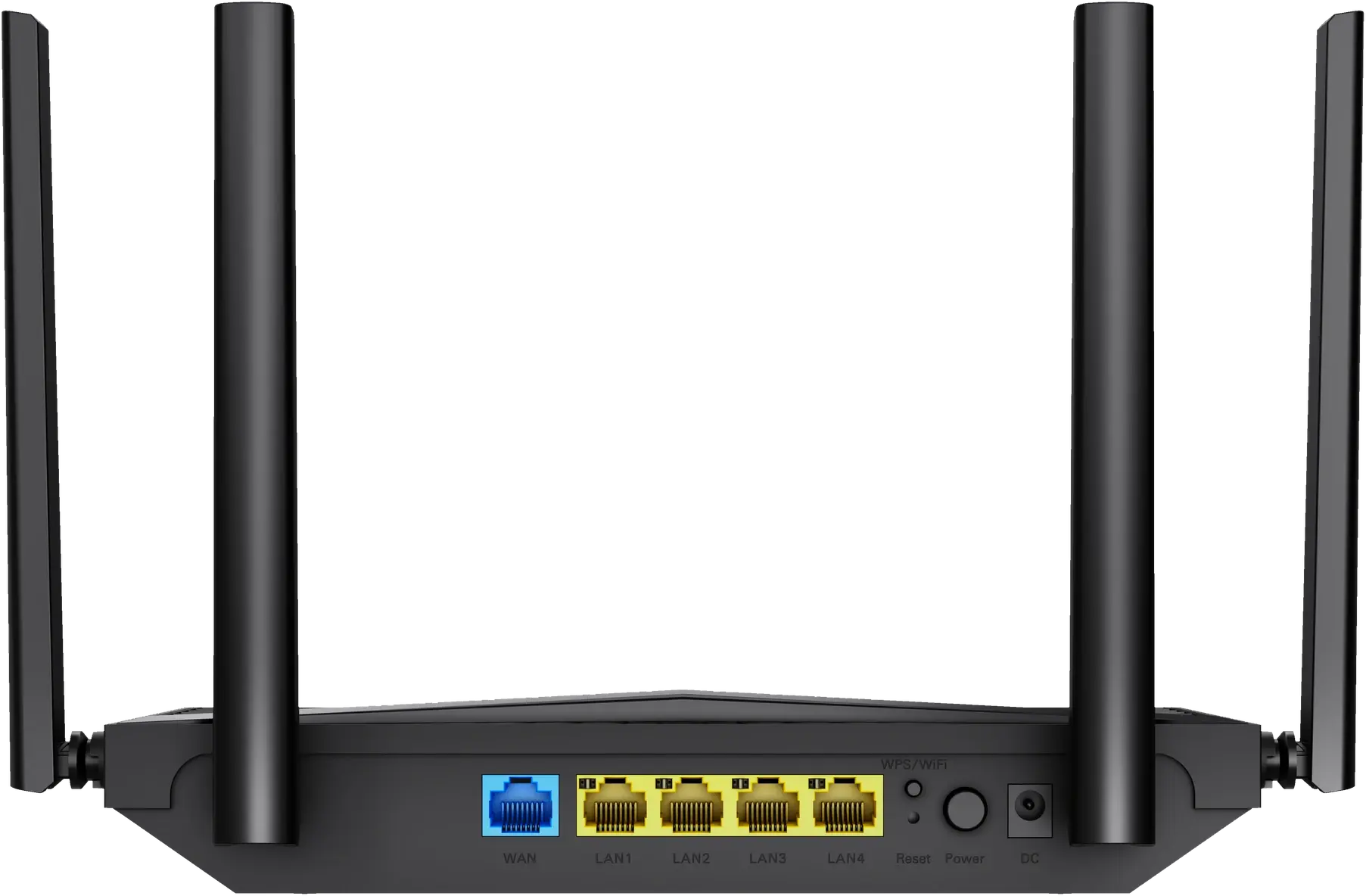

The R30 rear panel, port by port.
Rear panel
Full specifications
Values marked TBD are still to be confirmed and will be published once the datasheet is finalized.
Wireless
- Wi-Fi standard
- Wi-Fi 6 (802.11ax)
- Wi-Fi class
- AX3000
- Bands
- Dual-band 2.4 GHz + 5 GHz
- 2.4 GHz data rate
- 574 Mbps (802.11ax)
- 5 GHz data rate
- 2402 Mbps (802.11ax, HE160)
- Stream technology
- Smart OFDMA + MU-MIMO
- Front-end module
- High-power external FEM (eFEM) on 2.4 and 5 GHz
- Antennas
- 4 × high-gain external
- Antenna gain
- 5 dBi
Connectivity
- WAN port
- 1 × 2.5 Gigabit WAN
- LAN ports
- 4 × Gigabit Ethernet
- Buttons
- WPS / Wi-Fi, Reset, Power on/off
Hardware
- Chipset
- Airoha / MediaTek
- RAM
- 512 MB
- Flash memory
- 256 MB
- Dimensions (W × D × H)
- TBD
- Power input type
- DC jack
- Power method
- DC
- Power input
- 12 V / 2 A
- Operating temperature
- 0°C – 40°C (32°F – 104°F)
- Storage temperature
- -40°C – 60°C (-40°F – 140°F)
- Operating humidity
- 10% – 90% non-condensing
- Storage humidity
- 5% – 90% non-condensing
Software & security
- Encryption
- WPA3
- Mesh
- EasyMesh compatible
- Parental control
- Yes
- Remote management
- Yes
- IPv4 / IPv6 support
- Yes
Compliance & warranty
- Origin
- Made in India
- Warranty
- 3 years
- Box contents
- Router, power adapter, RJ45 Ethernet cable
